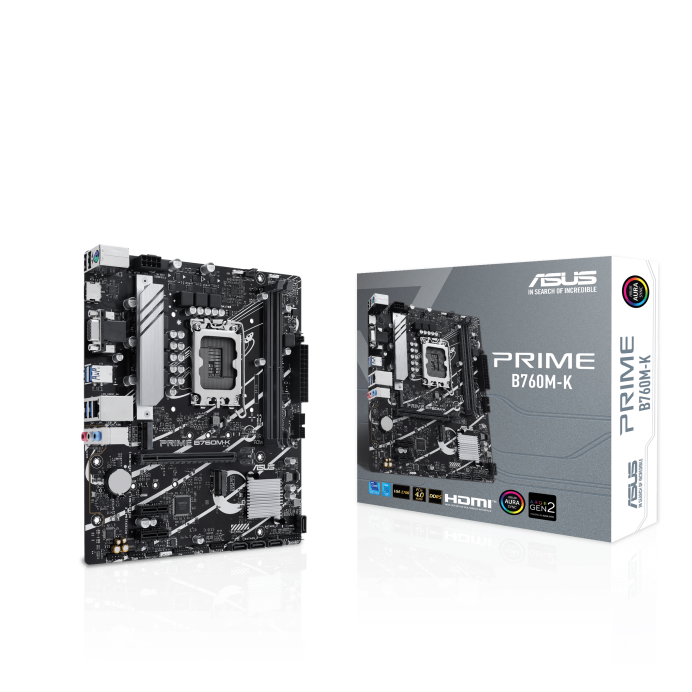

დედა დაფადა ASUS PRIME B760M-K s1700 B760

დაამატეთ გამოხმაურება პირველმა

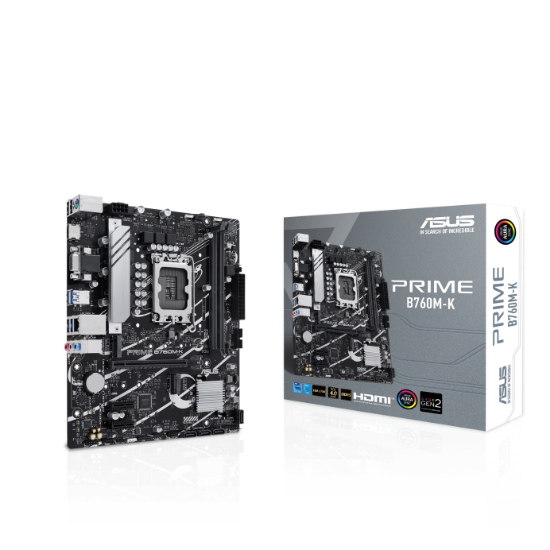

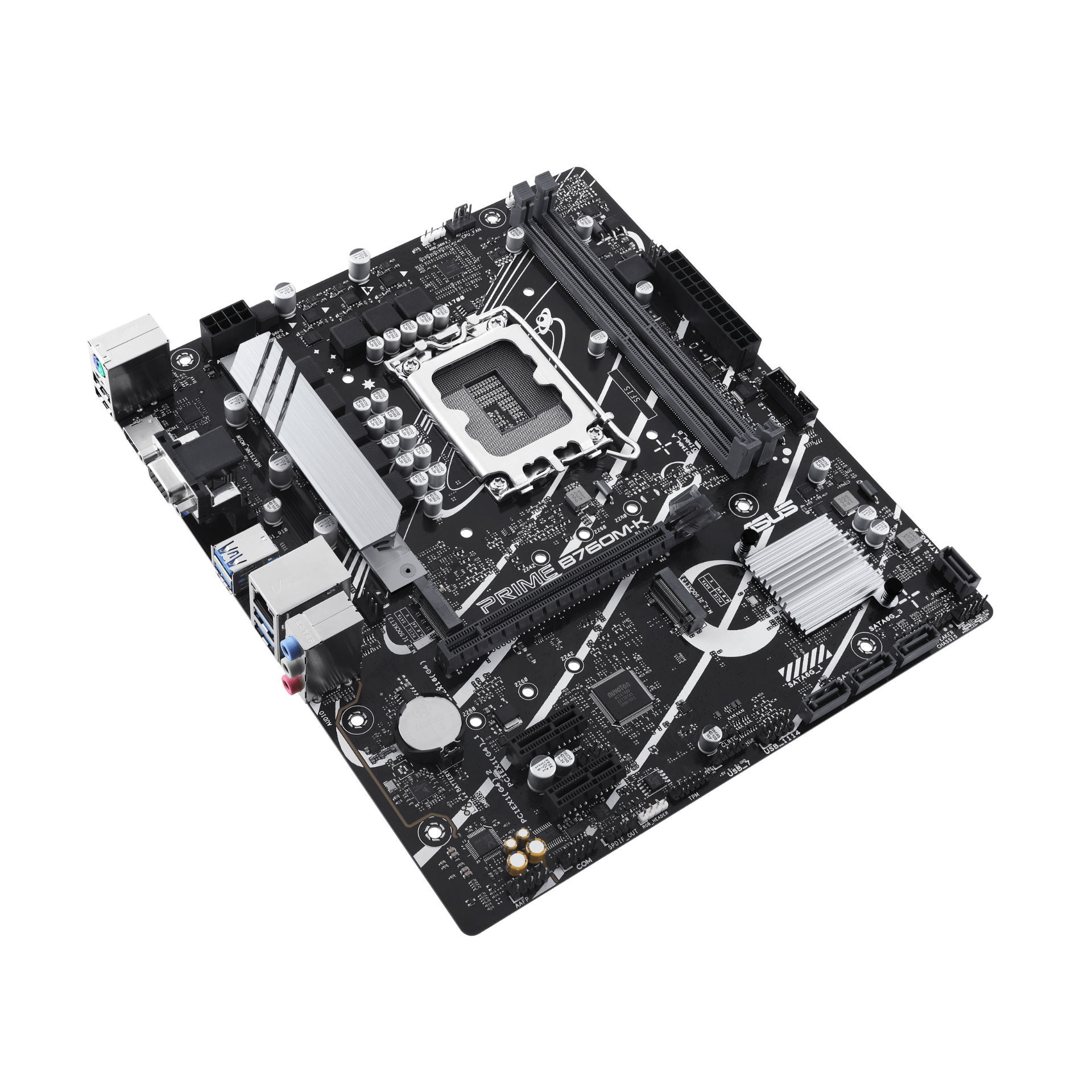

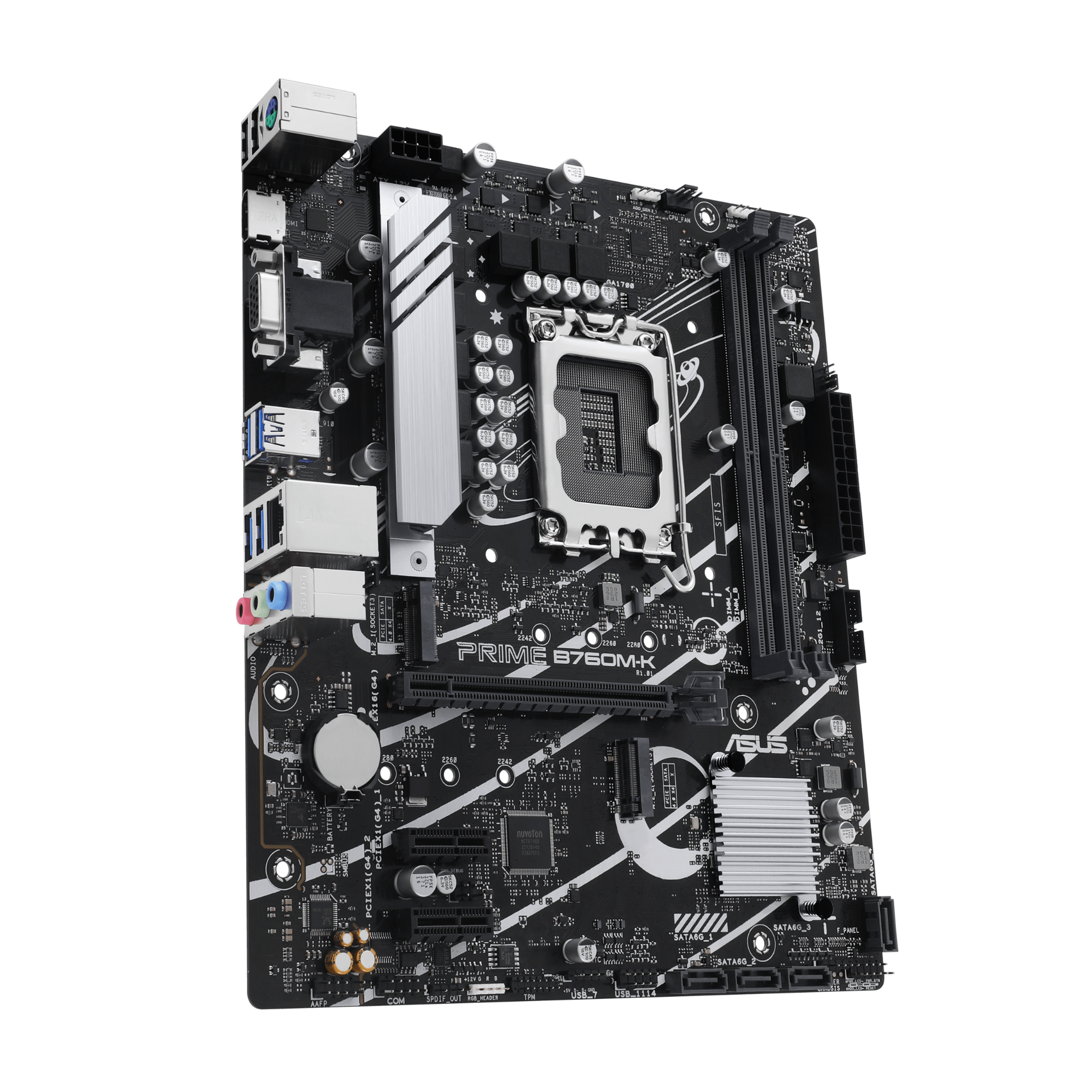

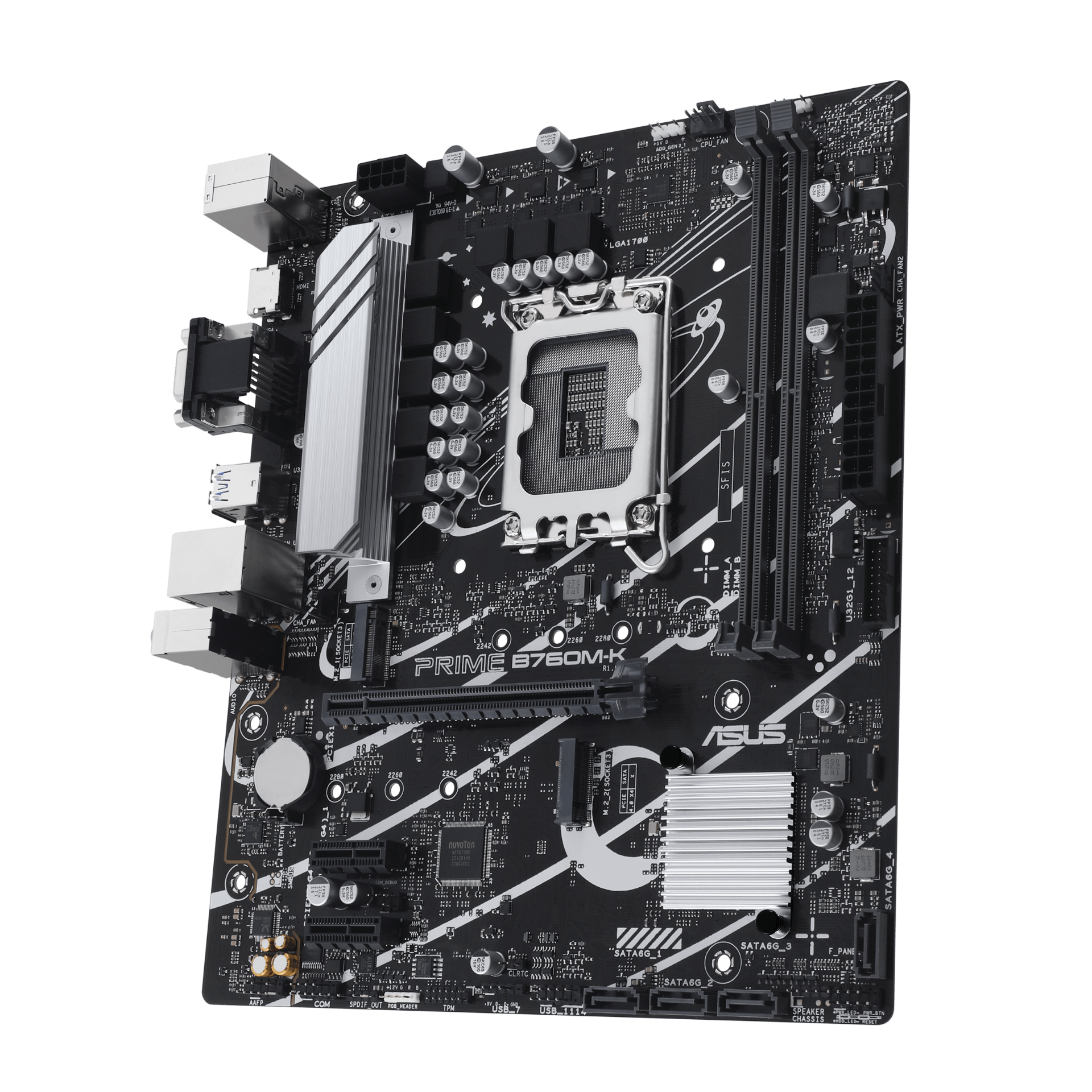

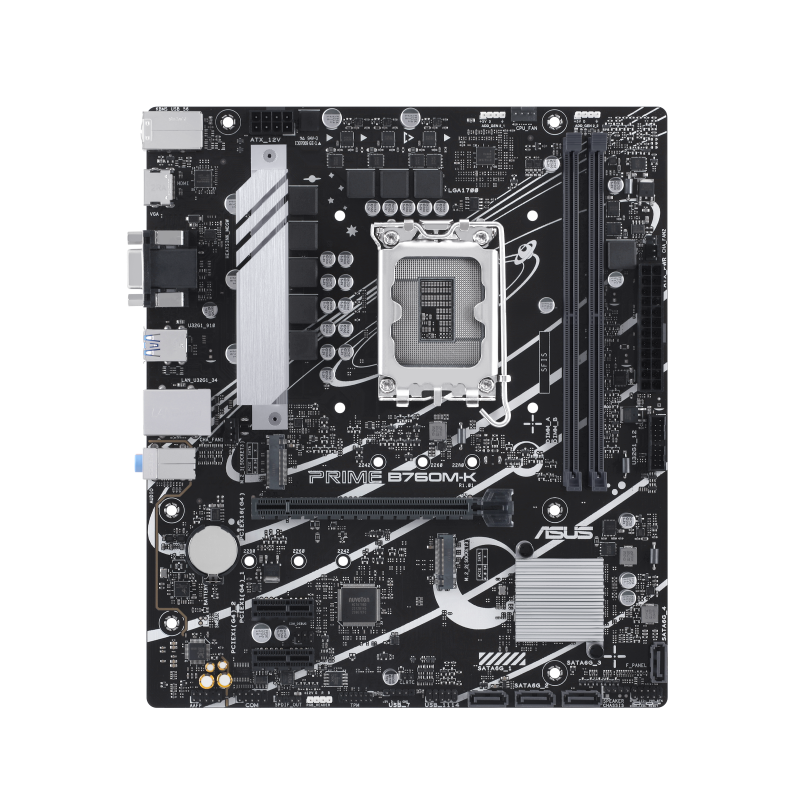

ASUS PRIME B760M-K s1700 B760 2xDDR5 M.2 HDMI D-Sub mATX

მწარმოებელი: Gigabyte

პროდუქტის კოდი: 90MB1FI0-M0EAY0

დეტალის მწარმოებლის ნომერი: 90MB1FI0-M0EAY0

347,00 ₾

increase decrease

Specifications
Reviews
Contact Us

სპეციფიკაცია

ატრიბუტის სახელი	ატრიბუტის მნიშვნელობა
General Information
Model	PRIME B760M-K
Manufacturer	ASUS
Official Manufacturer Link	https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-k/
Warranty	1 Year
Color	Black
Motherboard Specifications
Chipset	B760
CPU	Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Memory	2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Slot	Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot; Intel® B760 Chipset 2 x PCIe 4.0 x1 slots
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Raid	Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
USB	Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports
LAN	1 x Realtek 2.5Gb Ethernet
Form Factor	M-ATX
Internal IO	Fan and Cooling related 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports USB; 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous; 2 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header

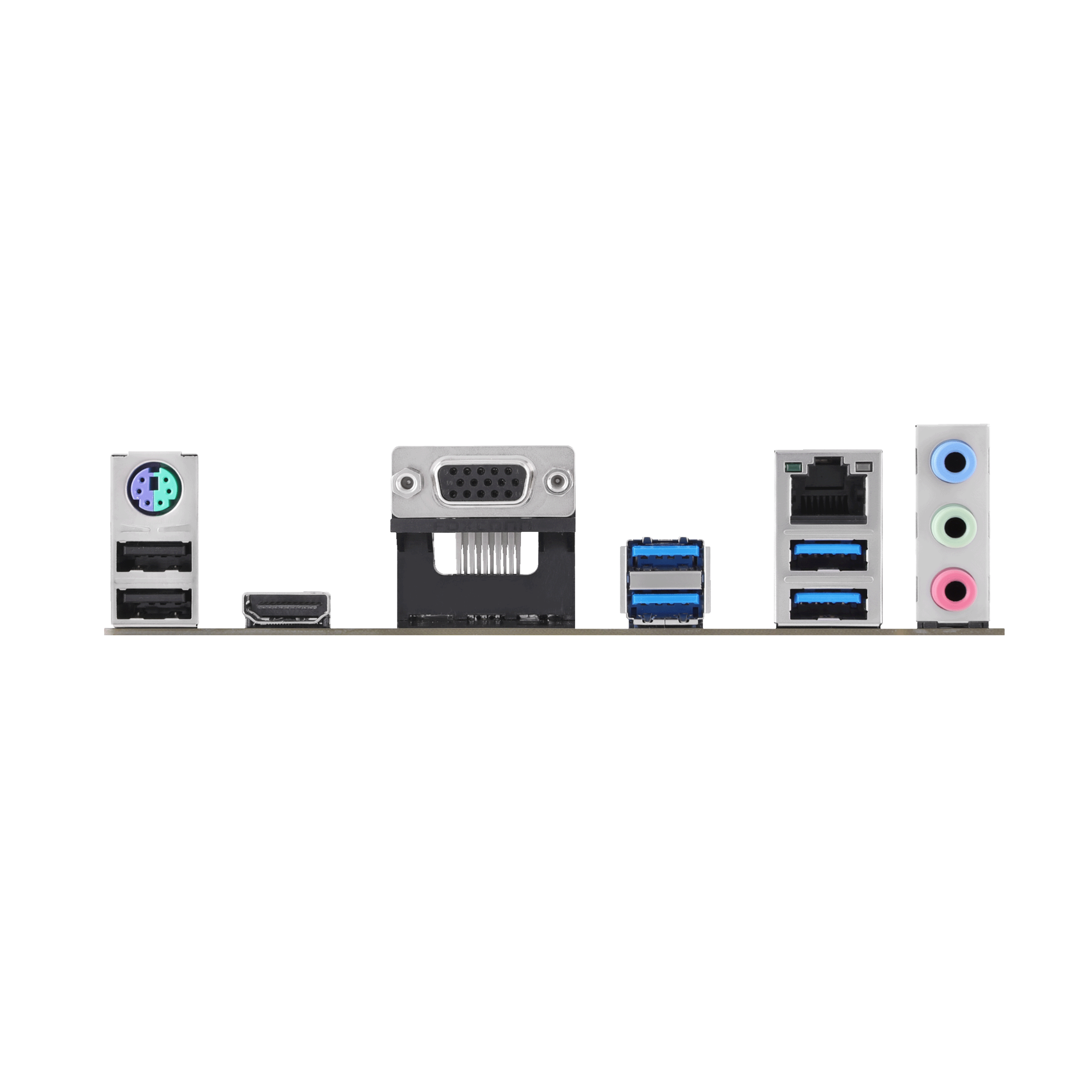

Back Panel Ports	4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x VGA port; 1 x HDMITM port; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port
